Bishop Solids Management Solution
Reduce the cost and complexity of solids collection, dewatering and containment with easy-to-operate, low-energy Bishop Solids Management Solutions.
Bishop Solids Management Solutions are ideal to collect and dewater virtually any type of organic or granular slurry material, including fines, silts and clays. Systems that are permanently installed, or operating on a temporary basis, are proven to provide consistent results and reliable, cost-effective dewatering performance, odour control and containment for a wide range of demanding applications.
Unlike complex, energy-intensive mechanical dewatering equipment, the Bishop approach utilizes a passive dewatering process that achieves a high level of dry solids using only specially selected polymers, Geotube® filtration and gravity.
Systems can be integrated to plant SCADA and can automatically adjust polymer dose and feed rates according to sludge characteristics.
Lagoon sludge cleanouts with the Bishop Solids Management Solution
Removing accumulated sludge from a lagoon system is a fast, cost-effective way to restore treatment capacity and performance. Our Solids Management Solution has been used at municipal and industrial sites to collect, dewater and consolidate sludge. It’s a simple, low-energy process that is proven to perform faster, more efficiently and often at lower cost than alternatives such as centrifuges.
Fast, effective performance
Bishop Solids Management Solutions, with Geotube® dewatering containers, can accept and dewater solids as fast as they can be pumped in, which eliminates the additional time that some conventional settling processes require.
Once dewatering is complete, solids content can be as high as 40%, which helps dramatically reduce transportation costs for disposal or reuse. The stabilized material emits no significant odour and is more like soil than sludge, enabling it to be used for soil amendment or landscape material, where appropriate.
These advantages enable Bishop Solids Management Solutions to perform faster, more efficiently and at lower cost than alternative systems.
A system for all dewatering and containment projects
Modular Bishop Solids Management Solutions are fully customizable to fit any dewatering and containment parameters within a compact site footprint. This versatility, combined with robust performance, has led to rapid adoption for challenging solutions throughout Canada
Wastewater and water treatment
Sludge dewatering, lagoon cleanout, septage management, water treatment residuals
Commercial, industrial & agricultural
Expand lagoon capacity, dewater and contain process waste material.
Stormwater ponds
Restore storage capacity without decommissioning ponds.
Environmental remediation
Dredging and dewatering of contaminated sediment from rivers, lakes, tailings ponds and more.
Construction
On-site collection and dewatering of excess solids for reuse or removal.

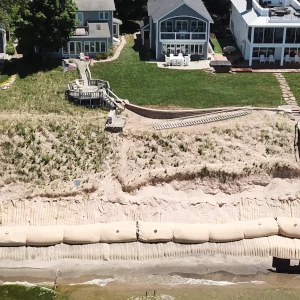

Shoreline protection & marine structures
Protect and reclaim land, create wetlands, build offshore structures
Precise polymer control accelerates dewatering and produces high quality filtrate.
Precise, automated polymer dosing with Bishop Water’s easy-to-use Venturi Emulsified Polymer Activation System (VEPAS™) accelerates dewatering and ensures that fine solids are bound together and remain in the container.
An optimized polymer regime, combined with Geotube® containers, aids in the removal and retention of contaminants such as BOD, TSS, phosphorus, nitrogen and even metals, including lead, copper, nickel, chromium, cobalt and more. In many cases, this treatment process can produce filtrate that meets regulatory requirements for discharge into sanitary sewers or directly into receiving bodies.
Speak with an expert
Contact us today to discuss a simple, low-energy solution for your site.
Download the brochure
